CADMatrix by CAD Pinnacle

Empower your engineering teams with AI-driven CAD asset management.
CADMatrix is our revolutionary product that provides intelligent search, file recommendations, and a fully integrated design ecosystem.

For developers, MatrixFind SDK seamlessly integrates AI-based search into your platforms—text, images, and 3D models at your fingertips.

Enjoy 30-Day Free Trial

Explore Key Features

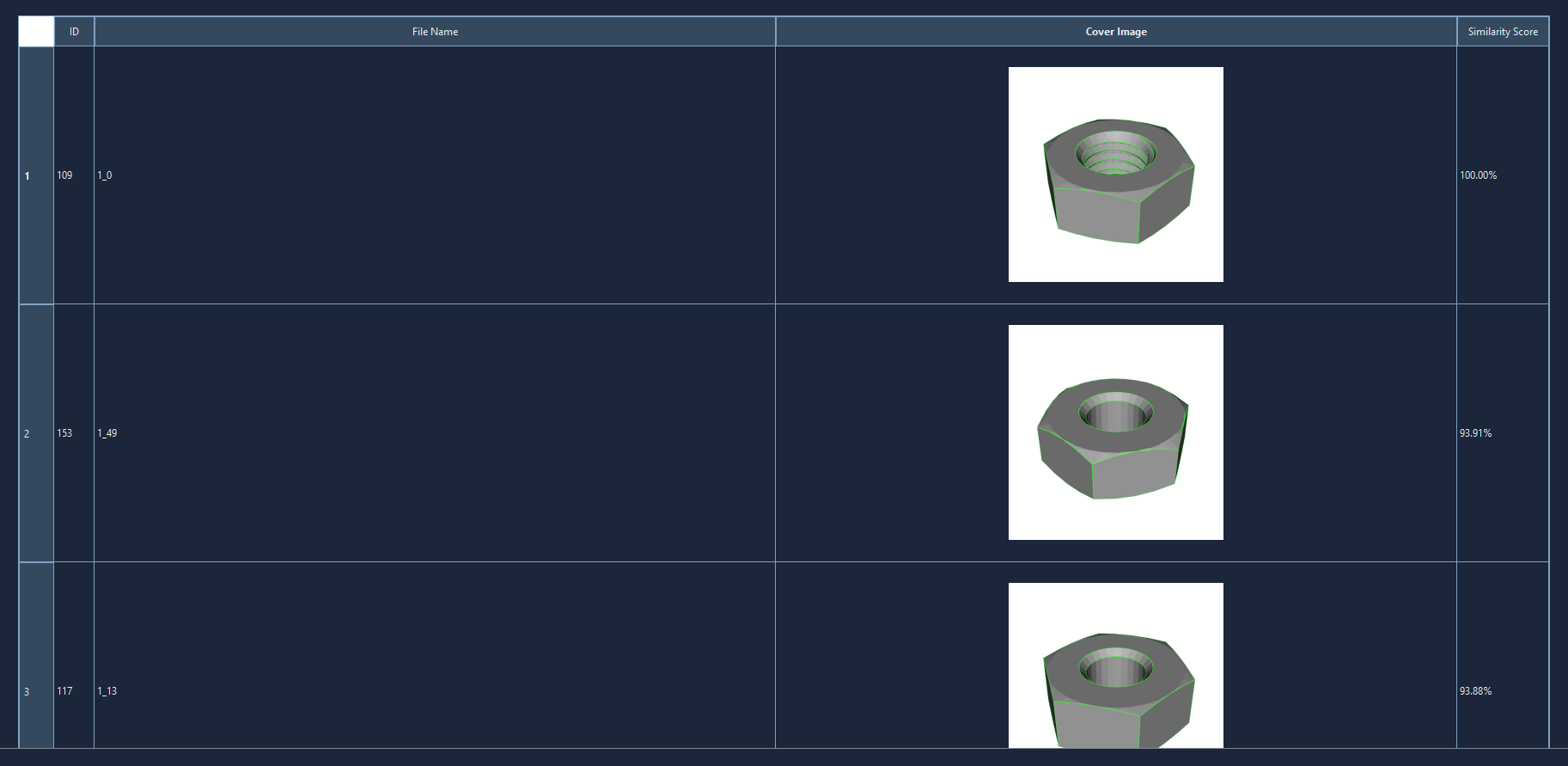

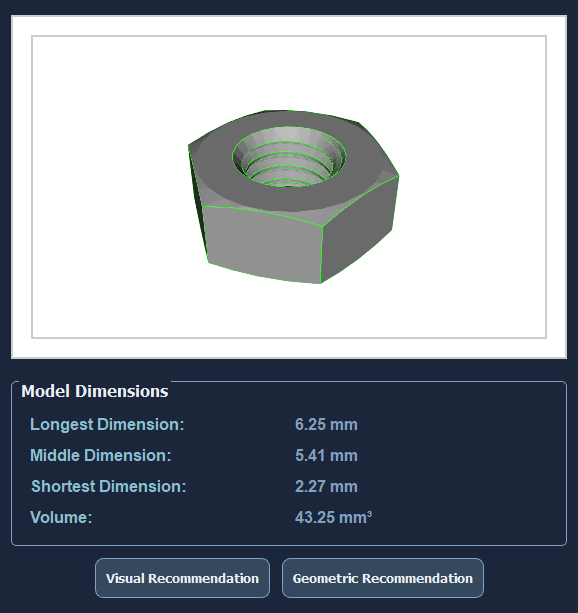

Geometric Preview Geometric Recommendation

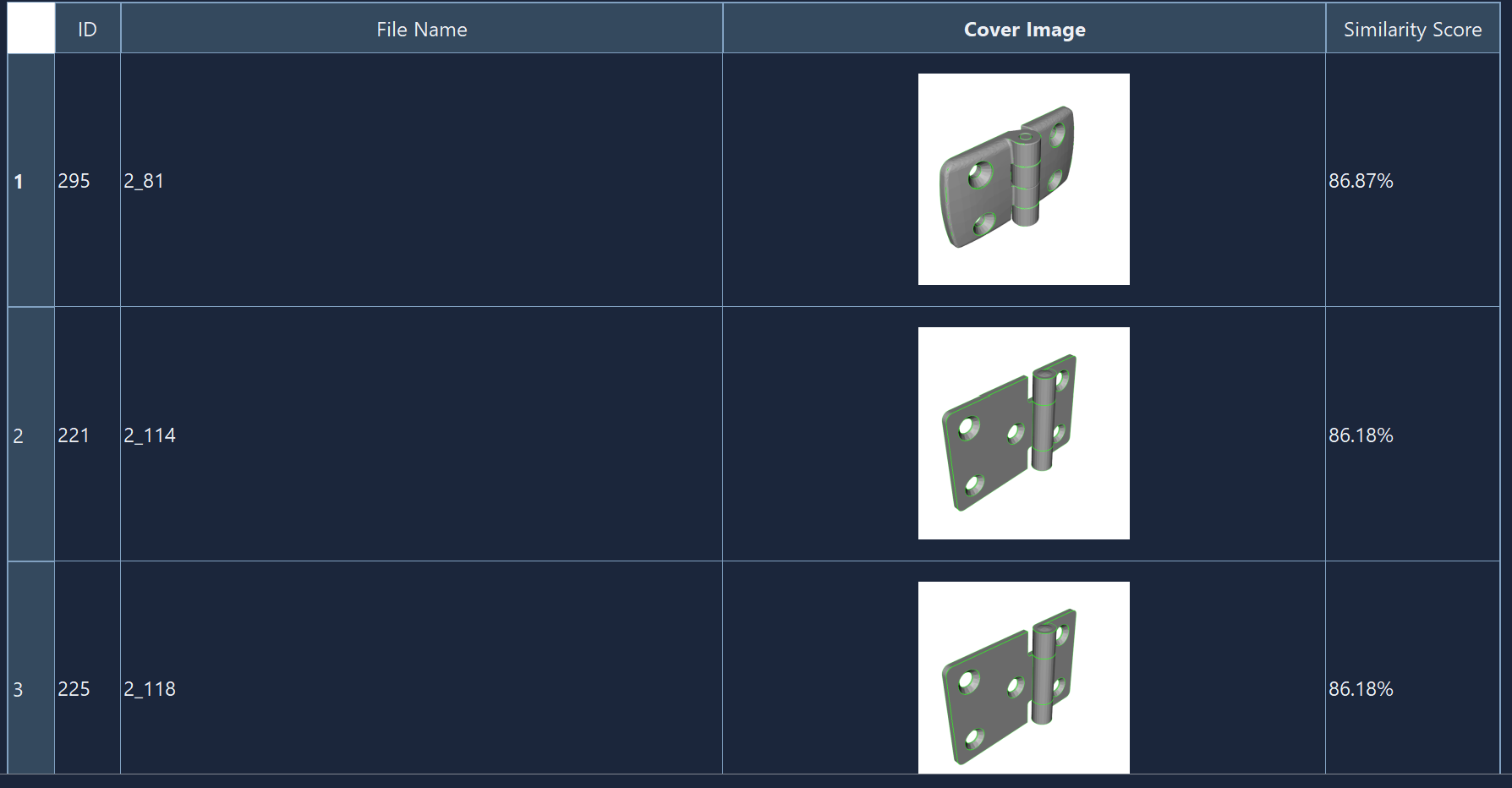

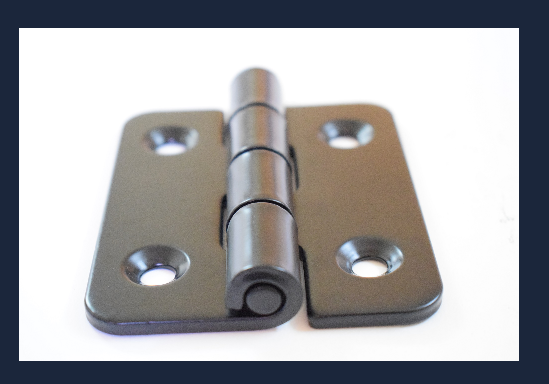

Image Preview Image Recommendation

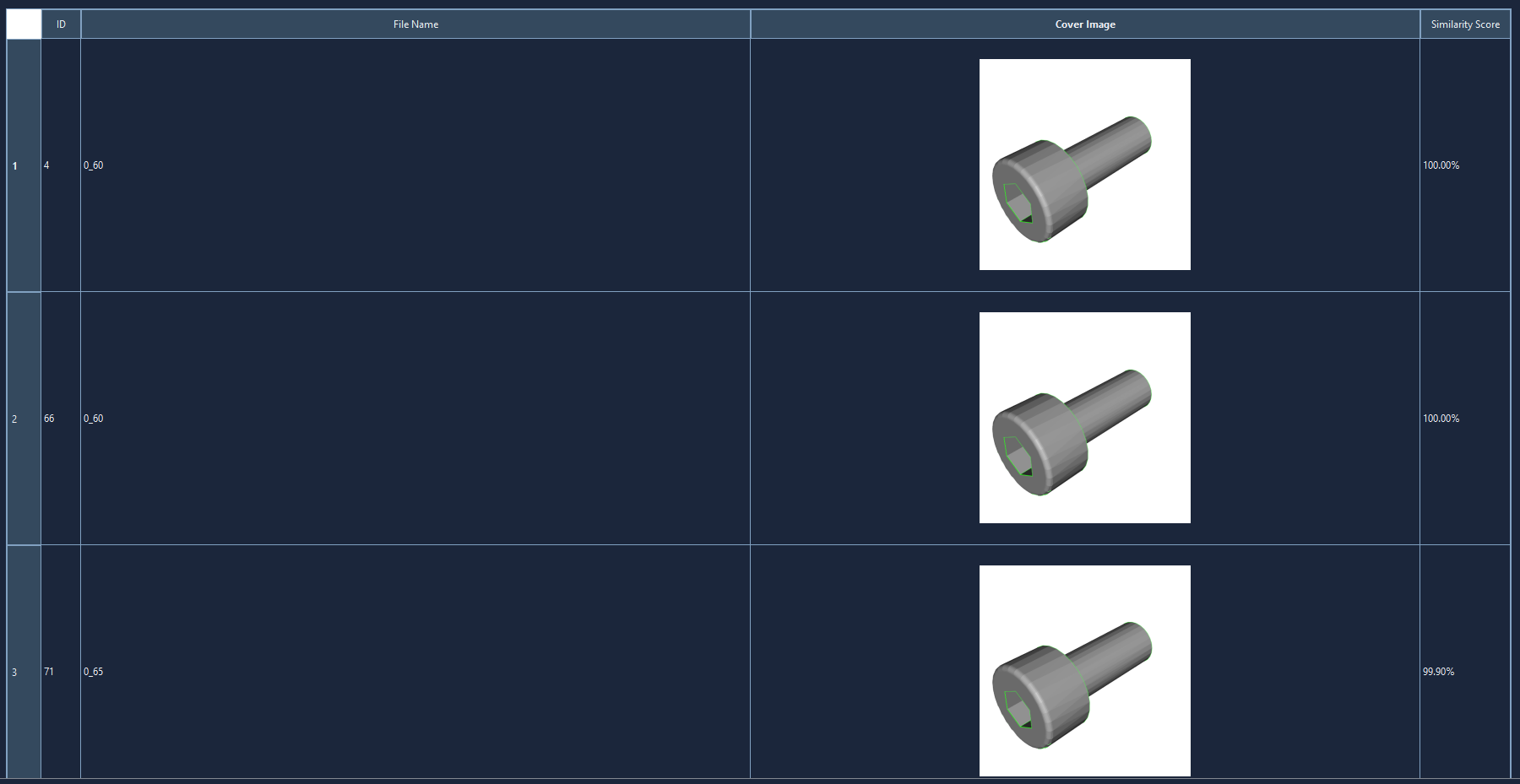

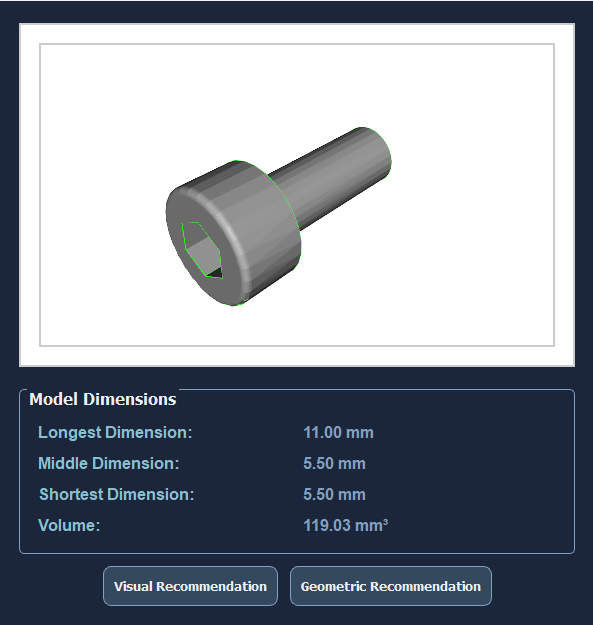

Visual Recommendation Preview Visual Recommendation Result

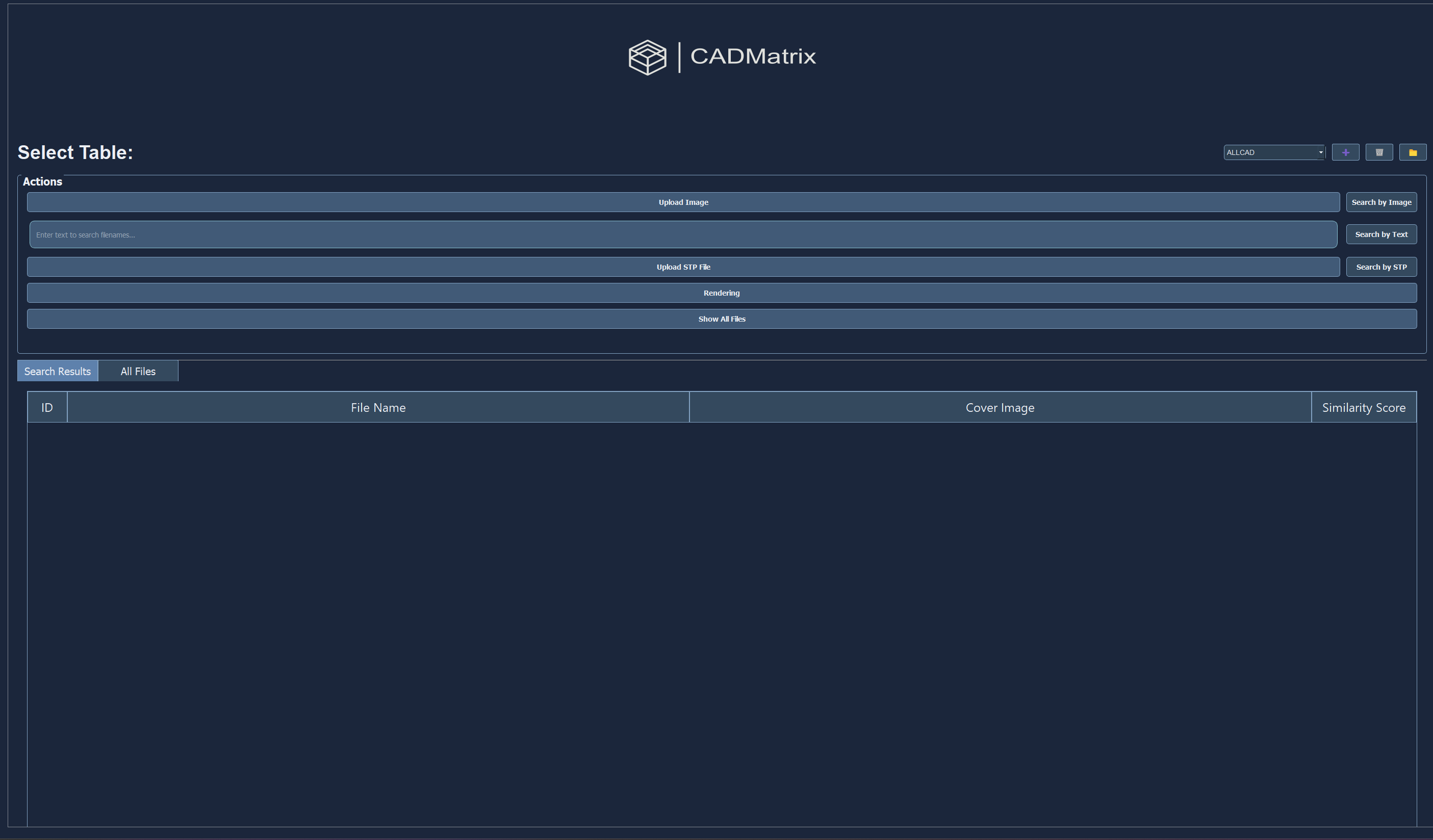

Full Product 2
Real Time Rendering
❮
❯

Key Features

AI-Powered & Multi-Modal Recommendations

Visual & Geometric Similarity

Upload a STEP file to instantly find CAD models with matching visuals and dimensions.

Multi-Modal Search

Use text, image, or 3D inputs for flexible and precise file suggestions.

Text-Based Discovery

Quickly locate CAD files with smart, name-based search.

Seamless Integration & Secure Data Management

API Integration

Easily embed our engine into your systems for enhanced part discovery.

Secure On-Prem Storage

Keep your CAD data confidential with robust on-premises security.

Multi-Database Support

Organize and manage data from various sources seamlessly.

Advanced File Organization & Viewing

Automatic Cover Image

Auto-generate cover images from STEP files for easy visual identification.

Smart Sorting & Metadata

Sort files by dimensions and manage metadata efficiently.

STEP File Viewer

Directly upload and view STEP files without third-party tools.

Why CADMatrix

Efficiency & Productivity

  • Reduced Manual Search Time: AI cuts file lookup by up to 50%, finding STP files, 3D models, images, and metadata fast.
  • Enhanced Design Efficiency: Streamline workflows and boost efficiency by up to 20% for quicker part identification.
  • Increased Productivity: Automate routine tasks to improve overall output by up to 30%.

Cost & Supply Chain

  • Improved Supply Chain: Quickly find alternative components to reduce vendor dependency.
  • Cost Savings: Discover cost-effective alternatives, lowering procurement expenses by up to 15%.
  • Optimized BOM: Reuse components and standardize BOM to minimize duplicates.

Data & Integration

  • Streamlined Data: Organize CAD files with detailed metadata to reduce clutter.
  • Secure Integration: Protect design data with on-premises security and seamless API connectivity.

Get in Touch

Interested in CADMatrix or MatrixFind SDK? Reach out to us for more info or a personalized demo!
